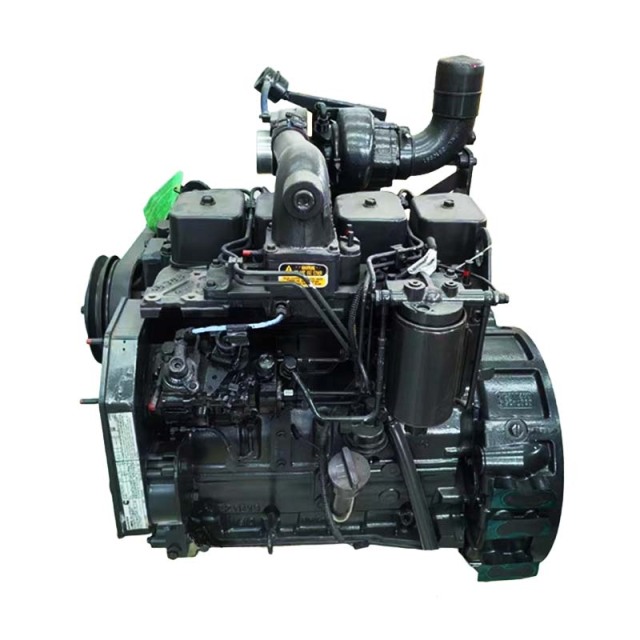

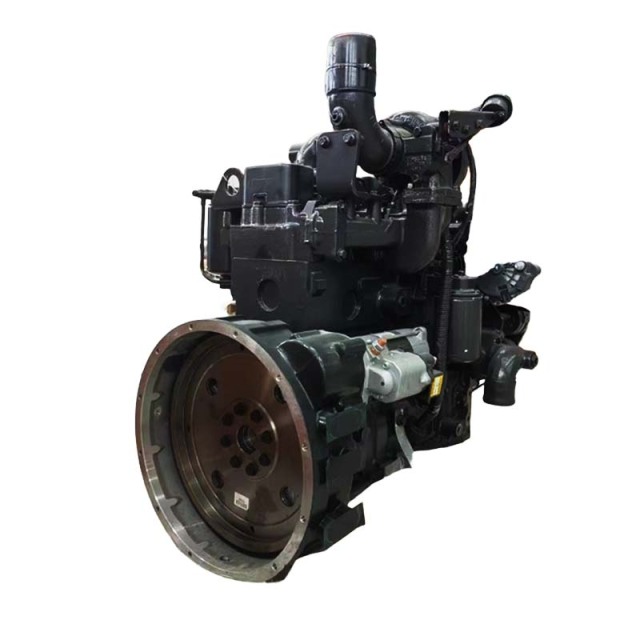

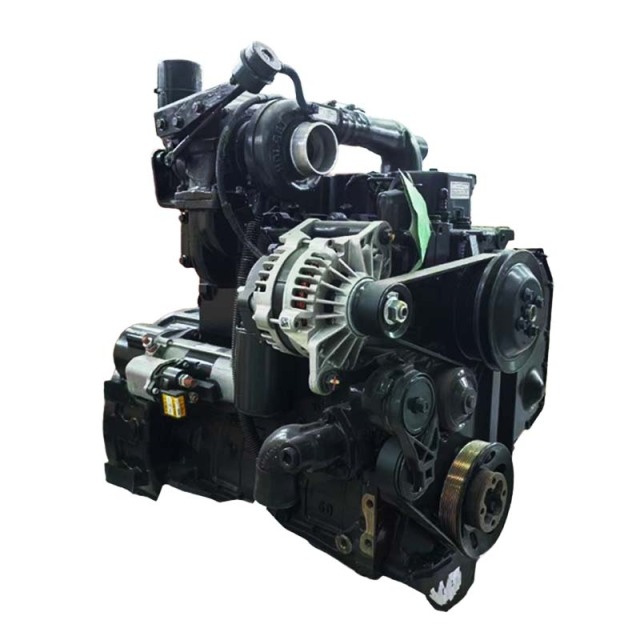

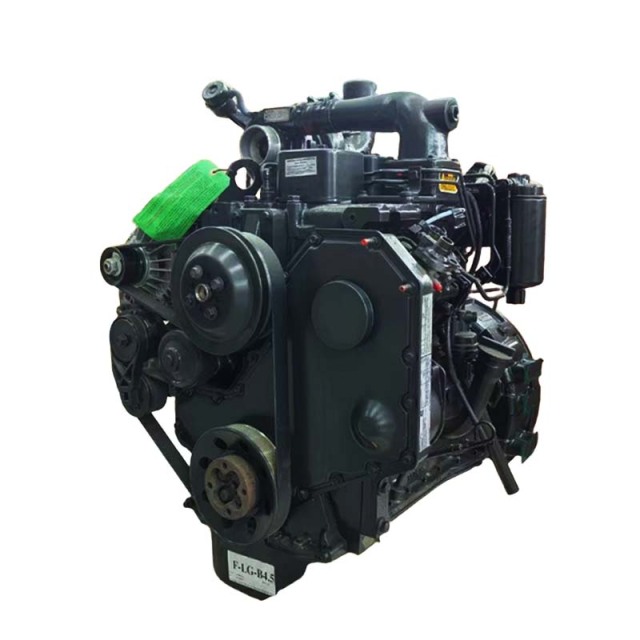

B4.5-150 |
B4.5-170 |
B4.5-200 |
|
|
Cyl No. and Arrangement |
4-Cyl in-line |
||
|
Bore/Stroke(mm) |
107/124 |
||
|
Air-intake way |
Turbo charged cooling |
||
|
Combustion system |
Direct injection |
||
|
Cooling way |
Water-cooled |
||
|
Displacement(L) |
4.5 |
||
|
Max.Torque(N.m) |
112 |
127 |
149 |
|
Power(kw) |
283 |
313 |
358 |
|
Power(hp) |
150 |
170 |
200 |
|
Speed(rpm) |
2000 |
||
|
Net Weight(kg) |
380 |
||
|
Weight(kg) |
450 |
||
|
Dimension(L*W*H/cm) |
85*65*90 |
||
|
Application: |
construction machinery / generator set / mining equiment / water pump / truck |
||
|
Certification |
ISO9001:2000 |
||
|
Warranty |
12 Months / 1000 Hours |
||
|
Quality Control |
The engines have been rigorously tested |
||
|
Payment |
T/T, Western Union, Alibaba online payment. |
||
|
Service |
Guidance on product issues through online and video support |
||
|
The price varies based on configu-ration, serial number, and part quality. For an accurate quote, contact a supplier with your specific engine serial number ornameplate. |
|||
