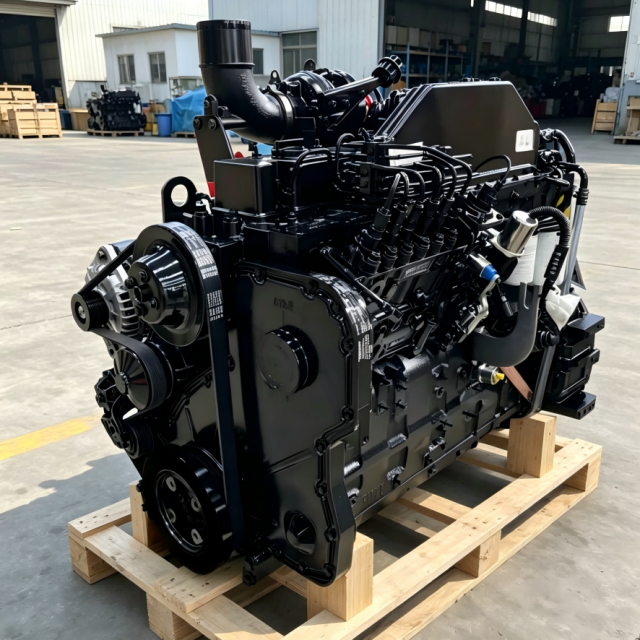

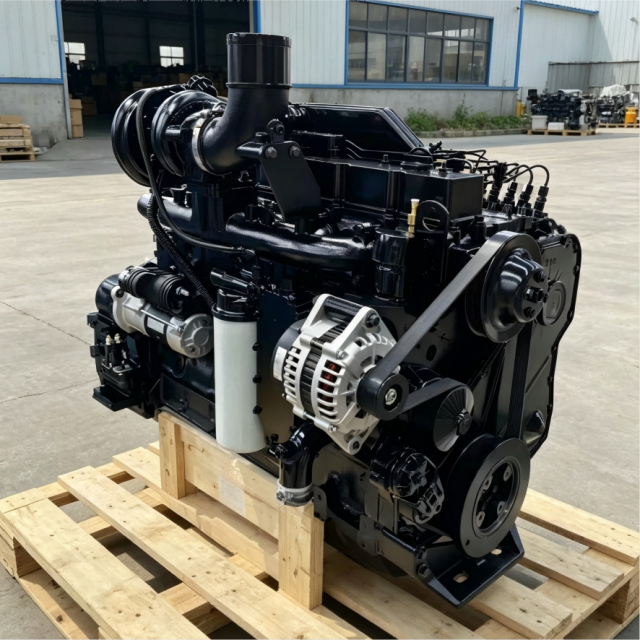

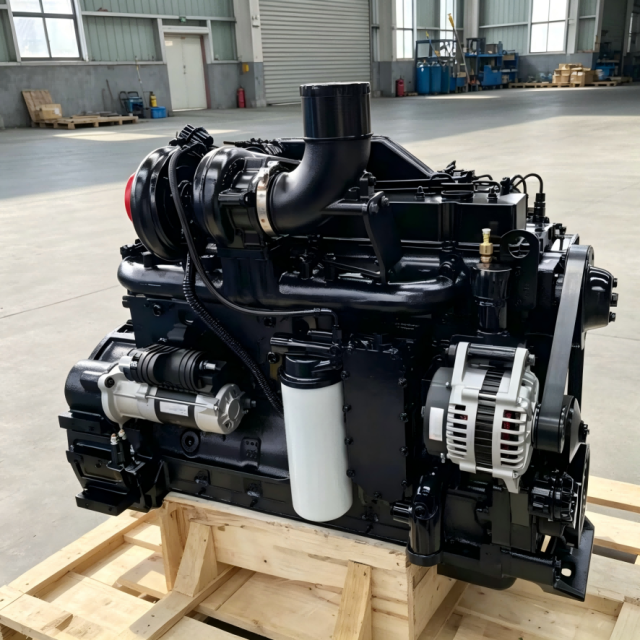

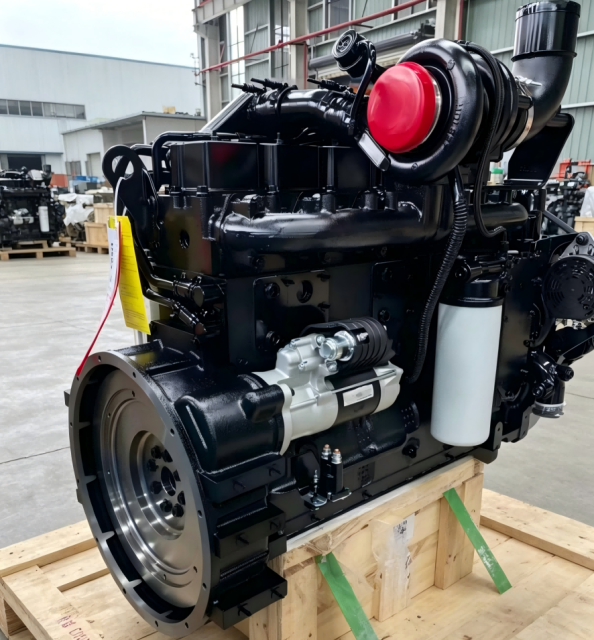

Cummins 6CTA8.3 machinery diesel engines water cooled 4 cylinder 4 stroke engine assembly

Our Cummins 6CTA8.3 remanufactured long block engine is a six-cylinder, turbocharged and air-to-air aftercooled diesel replacement unit built from genuine Cummins C-series core components, featuring complete reassembly with new heavy-duty forged steel pistons, upgraded keystone piston rings, induction-hardened cylinder liners, high-strength connecting rods with precision bushing fit, fully balanced forged steel crankshaft, improved multi-layer steel head gaskets, complete bearing sets with proper crush height, and all necessary seals and gaskets, precisely machined to OEM tolerances for cylinder bore roundness, main bearing bore alignment, camshaft end play, and cylinder head flatness, and it is 100% hot-run dyno tested under full load conditions to verify oil pressure, turbo boost response, air-to-air aftercooler compatibility, compression balance across all six cylinders, injector timing accuracy, and leak-free operation, making it a reliable power solution for transit and coach buses, marine propulsion for patrol boats and workboats, agricultural combines and large tractors, construction excavators and loaders, industrial compressors, irrigation pumps, and generator sets that demand the higher displacement, torque density, and durability of the 8.3L C-series platform for continuous high-output applications.

  • Cummins 6CTA8.3
  • Cummins 6CTA8.3
  • Cummins 6CTA8.3
  • Cummins 6CTA8.3

6CTA8.3-c200

6CTA8.3-c240

6CTA8.3-c300

Cyl No. and Arrangement

6-Cyl in-line

Bore/Stroke(mm)

114/135

Air-intake way

Turbo charged cooling

Combustion system

Direct injection

Cooling way

Water-cooled

Displacement(L)

8.3

Max.Torque(N.m)

650

780

950

Power(kw)

149

179

224

Power(hp)

200

240

300

Speed(rpm)

2000

Net Weight(kg)

650

Weight(kg)

750

Dimension(L*W*H/cm)

120*75*95

Application:

construction machinery / generator set / mining equiment / water pump / truck

Certification

ISO9001:2000

Warranty

12 Months / 1000 Hours

Quality Control

The engines have been rigorously tested

Payment

T/T, Western Union, Alibaba online payment.

Service

Guidance on product issues through online and video support

The price varies based on configu-ration, serial number, and part quality. For an accurate quote, contact a supplier with your specific engine serial number ornameplate.
