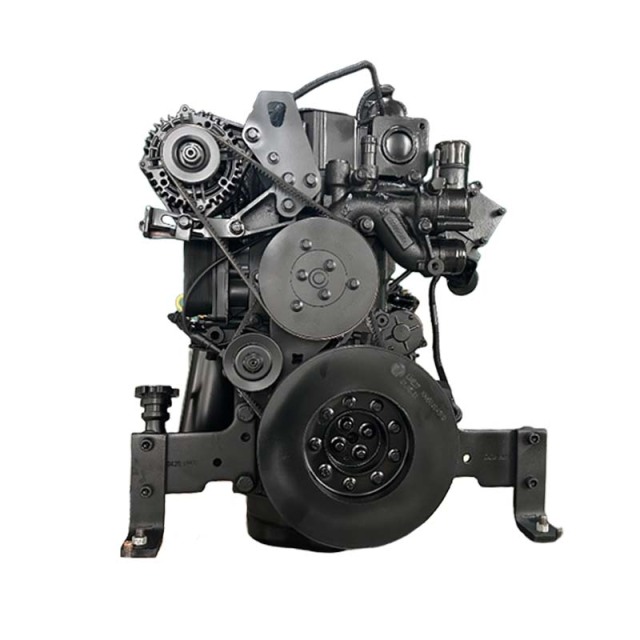

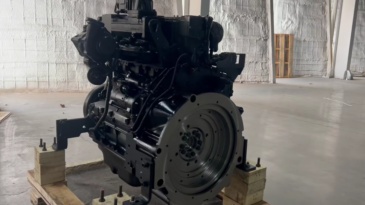

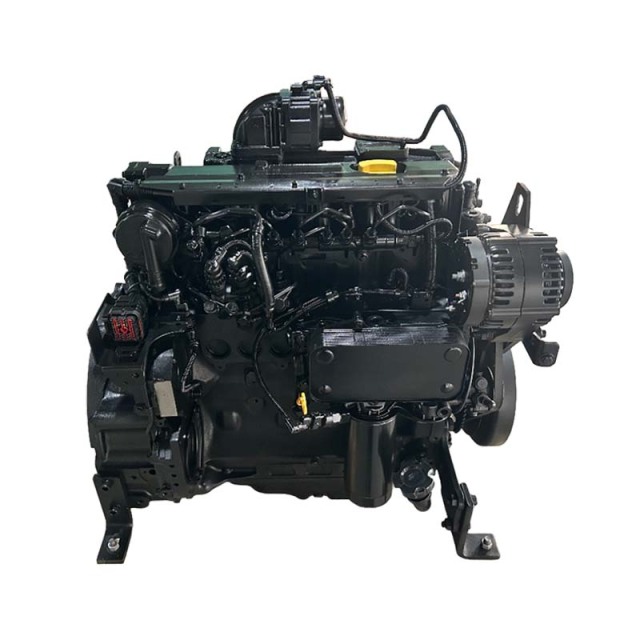

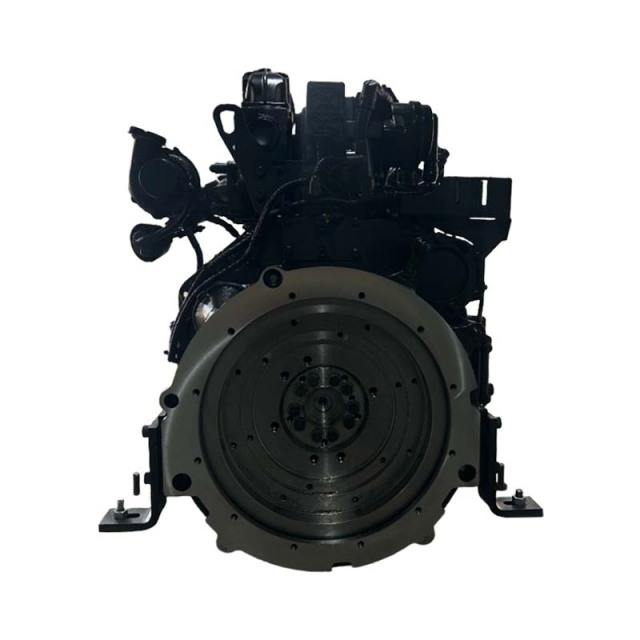

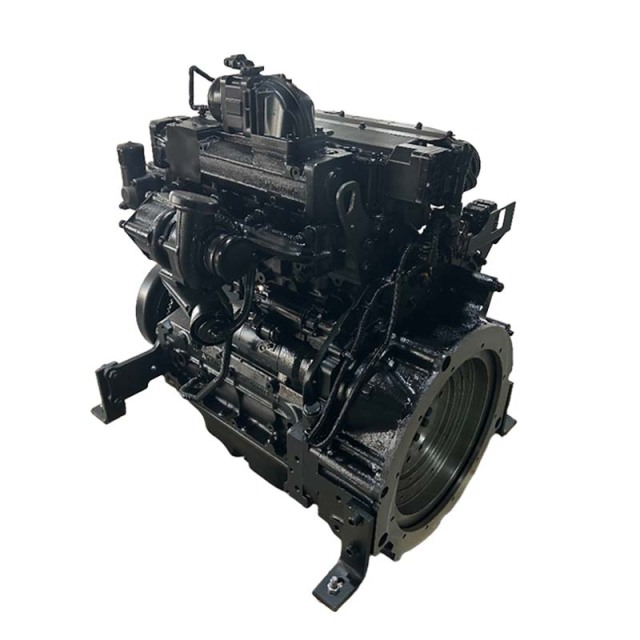

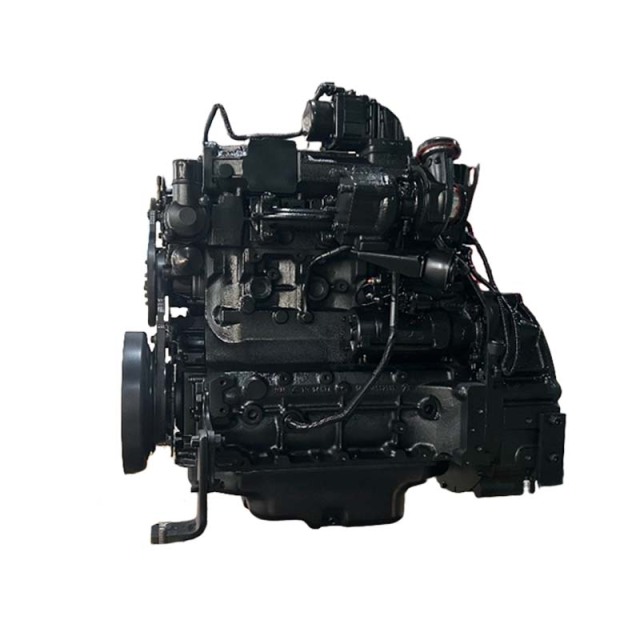

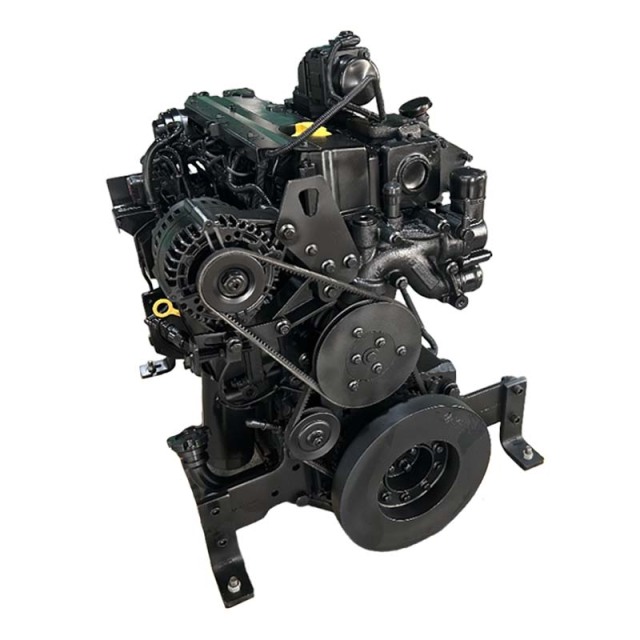

TCD2012 L04 2V |
|
A |
B |
C |
|
|
mm |
791 |
628 |
823 |
||
|
Cyl No. and Arrangement |
4-Cyl in-line |
||||
|
Bore/Stroke(mm) |
101/126 |
||||
|
Air-intake way |
Turbo charged cooling |
||||
|
Combustion system |
Direct injection |
||||
|
Cooling way |
Water-cooled |
||||
|
Displacement(L) |
4.04 |
||||
|
Max.Torque(N.m) |
520 |
||||
|
Power(kw) |
120 |
103 |
|||
|
Power(hp) |
161 |
138 |
|||
|
Speed(rpm) |
2100 |
2400 |
|||
|
Net Weight(kg) |
400 |
||||
|
Weight(kg) |
500 |
||||
|
Dimension(L*W*H/cm) |
115*90*125 |
||||
|
HS code: |
8408909290 |
||||
|
Application: |
construction machinery / generator set / mining equiment / water pump / truck |
||||
|
Certification |
ISO9001:2000 |
||||
|
Warranty |
12 Months / 1000 Hours |
||||
|
Quality Control |
The engines have been rigorously tested |
||||
|
Payment |
T/T, Western Union, Alibaba online payment. |
||||
|
Service |
Guidance on product issues through online and video support |
||||
|
The price varies based on configu-ration, serial number, and part quality. For an accurate quote, contact a supplier with your specific engine serial number ornameplate. |
|||||
